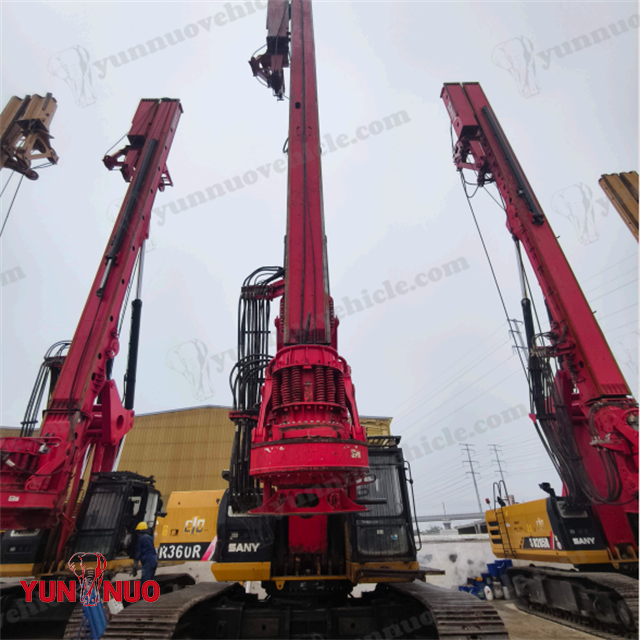

SR360R Rotary Drilling Rigs

SR360 Ⅲ-SR rotary drilling rig super-large bridge pile foundation construction stability high triangular amplitude structure, compared with the parallelogram structure increased by 12%. Strong construction capacity can achieve the maximum drilling diameter of 5M, drilling depth of 96M. Into the rock adaptive technology torque, speed, pressure automatic matching. The innovative power head has the characteristics of long service life, good cushioning performance, and convenient maintenance. Its power output control technology is perfectly matched with Sany self-made drill pipe, which can increase the life of the drill pipe by more than 10%. Dedicated rotary drilling rig chassis.

Availability:

Quantity:



Inquire

Model:
SR360R Rotary Drilling Rig
Brand:
Sany

Product Description

Whole machine specifications
Overall machine height	26.97m
Maximum pore diameter	2500mm
Maximum hole depth (friction bar/lock bar)	96m/65m
Working weight (including standard drill pipe configuration)	120t

Bit performance
Maximum output torque of power head	360kN.m
Power head speed	5～20rpm

Pressurization performance
Pressurization System Pressurization	320kN
Pulling force of pressurization system	320kN
Pressurized system stroke	8000mm

Main/auxiliary hoist
Main hoist lifting force (first layer)	390kN
Diameter of main hoisting wire rope	36mm
Main hoist maximum speed	60m/min
Auxiliary hoist lifting force (first layer)	90kN
Diameter of auxiliary hoisting wire rope	20mm
Max speed of auxiliary hoist	70m/min
Mast inclination forward/aft	90/15°
Mast inclination left and right	±3°

Host Parameters
Engine Model	CAT C13
Engine power	305/1,800kw/rpm
Emissions	EU stage / EPA Tier3
Displacement	12.5L
Overall length of chassis	8093mm
chassis spread width	4,400mm
Crawler width	800mm
Tail turning radius	5100mm
