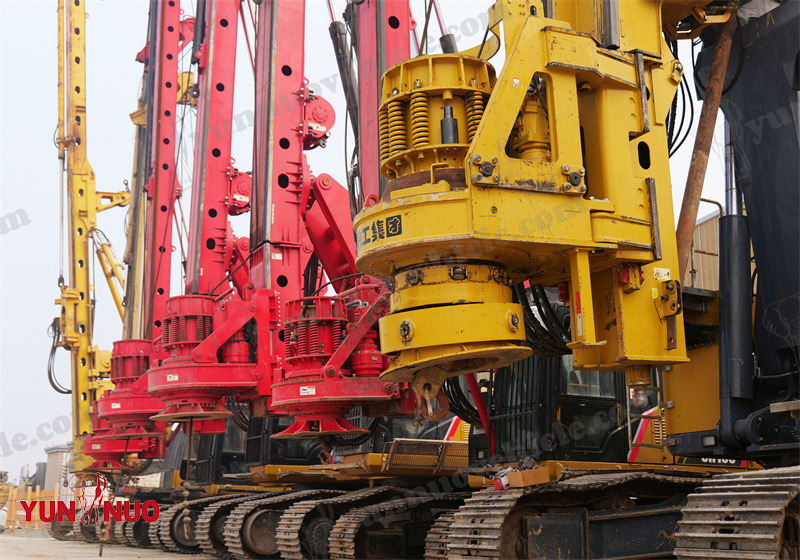

XR400E Rotary Drilling Rigs

         XCMG XR400E Optimally designed double swing arm luffing mechanism and optimized hinge point position ensure the construction stability and the transport convenience;It adopts dedicated H-style hydraulic retractable crawler chassis for rotary drilling rigs and large diameter slewing bearing, which ensures super stability and transport convenience.Imported Cummins engine ensures strong power and has three-gear power control. Users can choose suitable gears according to working conditions, realizing the three-in-one of the drilling rig. Optimized three-gear power curves effectively reduce the fuel consumption and use costs.
Availability:
Quantity:
  • XR400E Rotary Drilling Rig

  • XCMG

Item
Parameters
Maximum Drilling Diameter
φ2800/φ2500*
mm
Maximum Drilling Depth
103
m
Model
373
kW
Maximum Output Torque
400
kN·m
Speed
25
r/min
Maximum Pressure
300
kN
Maximum Lifting Force
400
kN
Maximum Travel
6
m
Maximum Pressure
400
kN
Maximum Lifting Force
400
kN
Maximum Travel
18
m
Maximum Lifting Force
370
kN
Max. Hoist Speed
60
m/min
Maximum Lifting Force
100
kN
Max. Hoist Speed
65
m/min
Lateral/Forward/Backward Swing Angle
±5/4/15
°
Maximum Travel Speed
Maximum Travel Speed
km/h
Maximum Gradeability
35
%
Track Shoe Width
800
mm
Maximum Total Width of Crawler
3600-4900
mm
Working Pressure
32
MPa
Whole Machine Quality
118
t

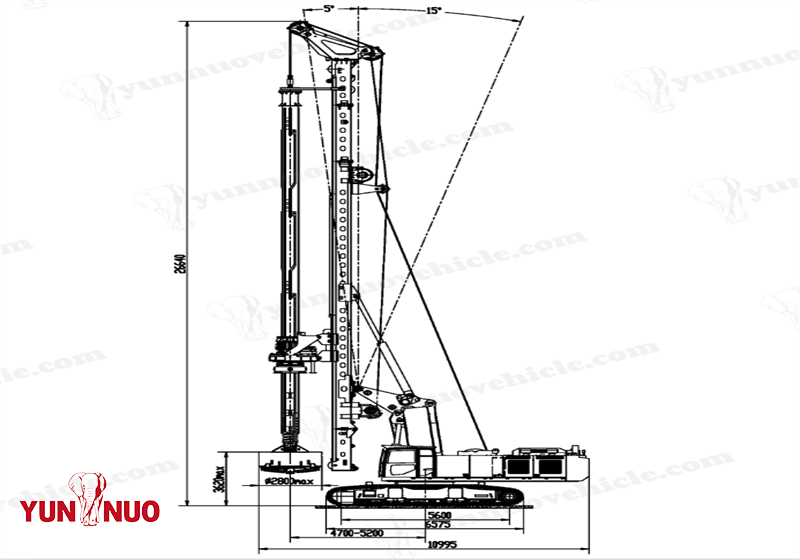

Working Status
10995×4900×26640
mm
Transport Status
20755×3500×3910
mm
