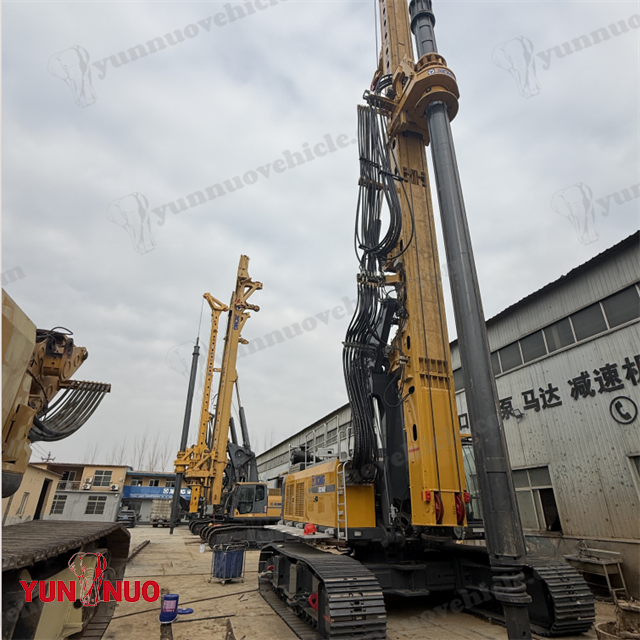

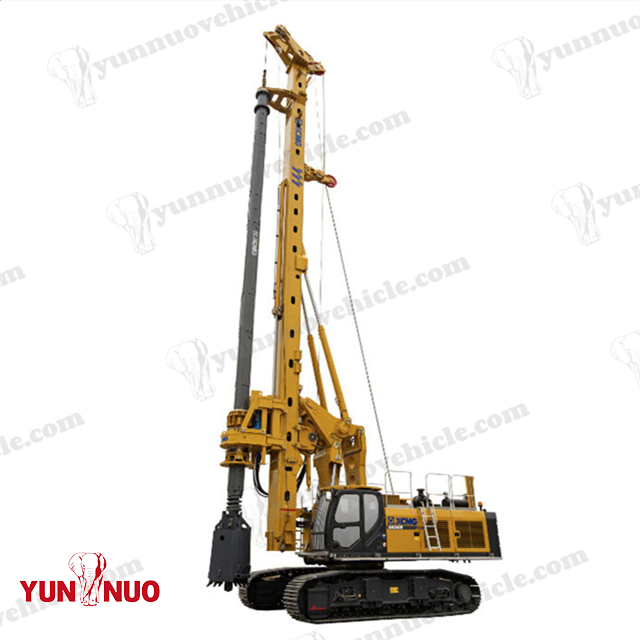

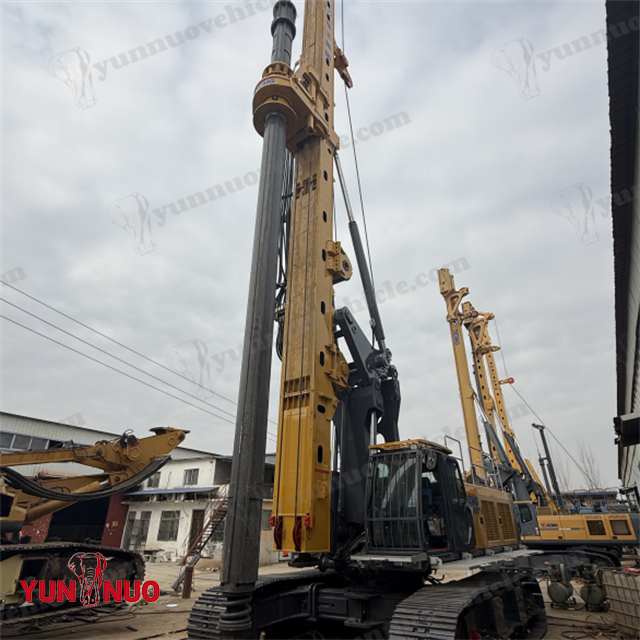

XR240E Rotary Drilling Rigs

The widespread application of rotary drilling rigs is the combined result of engineering demands, technological advances and environmental requirements. These rigs have become the mainstream equipment for modern pile foundation construction, and are particularly suitable for deep foundation operations in urban dense areas and high-standard projects.

Availability:

Quantity:



Inquire

Model:
XR240E
Brand:
XCMG

Product Description

Working parameters
Maximum drilling diameter	mm	φ2200/ φ2000 *
Maximum drilling depth	m	70

Engine Parameters
Model		6UZ1X
Rated power	kW	270

Power head parameters
Maximum output torque	Knapsack M dress	240
Speed	r/min	7-30

Pressurizing cylinder parameters
Maximum pressure	kN	210
Maximum lifting force	kN	220
Maximum travel	m	5

Pressurized hoist parameters
Maximum pressure	kN	250*
Maximum lifting force	kN	250*
Maximum travel	m	13*

Main hoist parameter
Maximum lifting force	kN	240
Max. hoist speed	m/min	70

Secondary winch parameters
Maximum lifting force	kN	80
Max. hoist speed	m/min	70
Drill mast inclination lateral/forward/backward	°	±4/5/15

Chassis parameters
Maximum travel speed	km/h	1.8
Maximum grade	%	35
Track shoe width	mm	800
Maximum total width of crawler	mm	3250-4400

System parameters
Working pressure	MPa	35
Whole machine quality	t	84
Outline dimension parameters
Working status	mm	8870 × 4400 × 22800
Transport status	mm	17525 × 3250 × 3594
