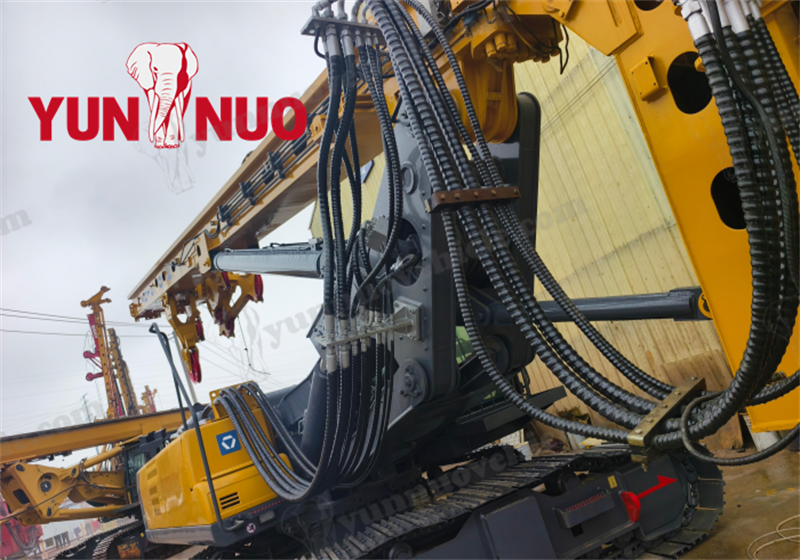

XR160E Used Rotary Drilling Rig

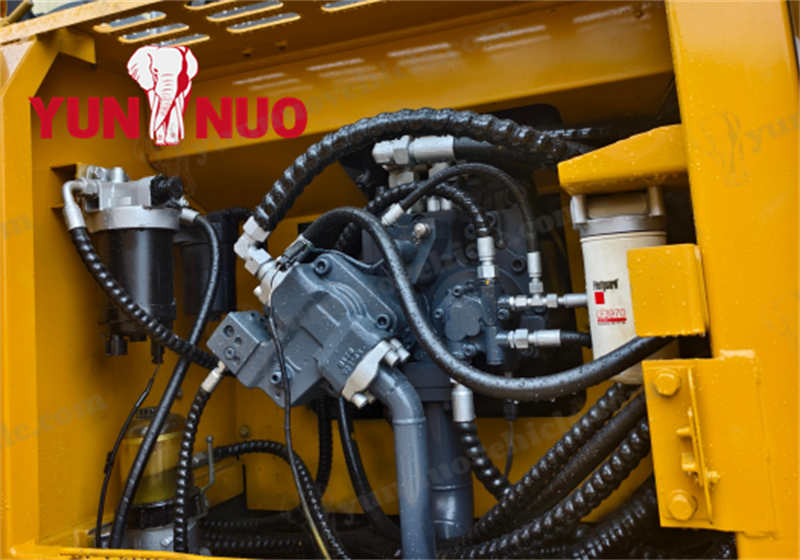

As a multi-functional machine, XR160E can realize the quick switching of functions such as crowd cylinder, crowd winch, CFA and dual rotary drive to meet more different construction needs.Cummins electronically controlled turbocharged engine ensures strong power, convenient and efficient service.With a maximum output torque of 160kN·m and a maximum speed of 35 r/min, the rotary drive can work more efficiently.High-speed spin-off function is optional for rotary drive.

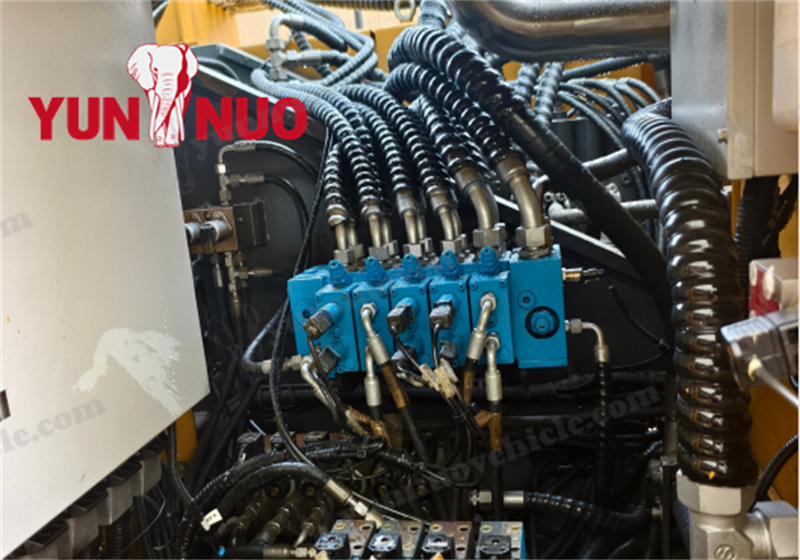

The main and auxiliary winches both adopt single-row rope technology. The service life of the wire rope is 2~4 times longer than that of the multi-row rope and the cost is lower. The double jib parallelogram luffing mechanism has a large support angle and a 24% increase in support range, which makes the operation more stable.The hydraulic system adopts negative flow control technology which has a fast response and good handling performance.

The high-power dual hydraulic oil cooler is suitable for construction in high-temperature areas.The intelligent control system can achieve functions such as automatic adjustment and display of mast perpendicularity, automatic slew and spin-off, etc.With a large diameter slewing bearing, the TDP series hydraulic crawler chassis dictated for rotary drilling rigs ensures better working stability.
