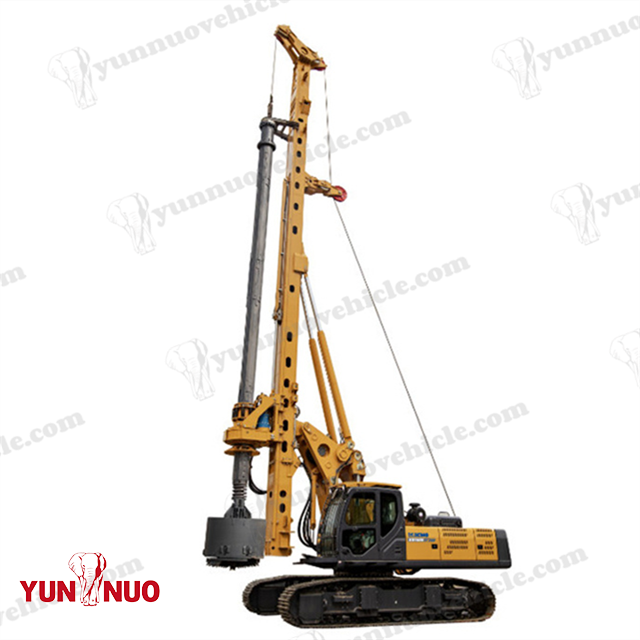

XR160E Rotary Drilling Rigs

XR160E rotary drilling rig is a new generation of E series small tonnage product which optimizes the matching of electro-hydraulic system and engine system on the basis of mature XR150DⅢ to improve working efficiency. It adopts optimized large-scale structural components such as slewing platform of “工”shape beam structure, double jib parallelogram luffing mechanism, segmented plate thick type drilling mast and so on to improve working stability and reliability.

Availability:

Quantity:



Inquire

Model:
XR160E Rotary Drilling Rig
Brand:
XCMG

Product Description

Project	Unit	Parameters
Maximum Drilling Diameter	mm	φ1500/φ1300*
Maximum Drilling Depth	m	56
Model	-	QSB7
Rated Power	kW	150
Maximum Output Torque	kN·m	160
Rotating Speed	r/min	5-35
Maximum Pressure	kN	160
Maximum Lifting Force	kN	160
Maximum Stroke	m	4.2

Maximum Pressure	kN	160*
Maximum Lifting Force	kN	180*
Maximum Stroke	m	13*
Maximum Lifting Force	kN	160
Max. Hoisting Speed	m/min	80
Maximum Lifting Force	kN	60
Max. Hoisting Speed	m/min	80
Drill Mast Inclination (Lateral/Forward/Backward)	°	±4/5/15
Maximum Travel Speed	km/h	2.5
Maximum Climbing Gradient	%	40

Track Shoe Width	mm	700
Maximum Total Width of Crawler	mm	2960-4200
Working Pressure	MPa	35
Whole Machine Weight	t	53

Working Status	mm	7862 × 4200 × 19028
Transportation Status	mm	14053 × 2960 × 3295

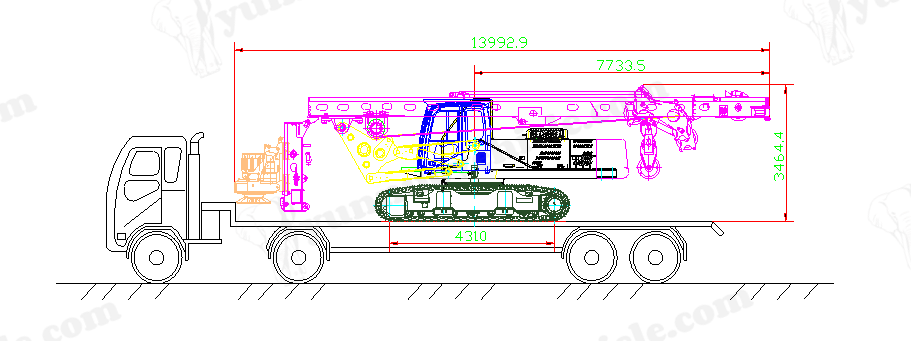

Transportation Plan
