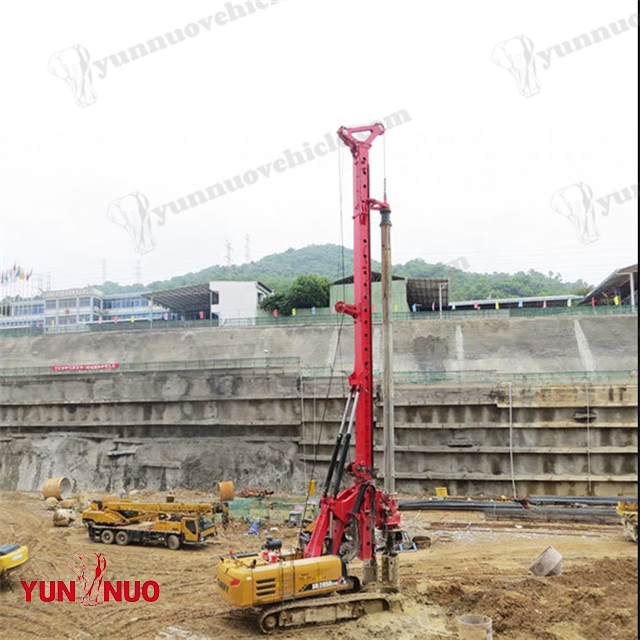

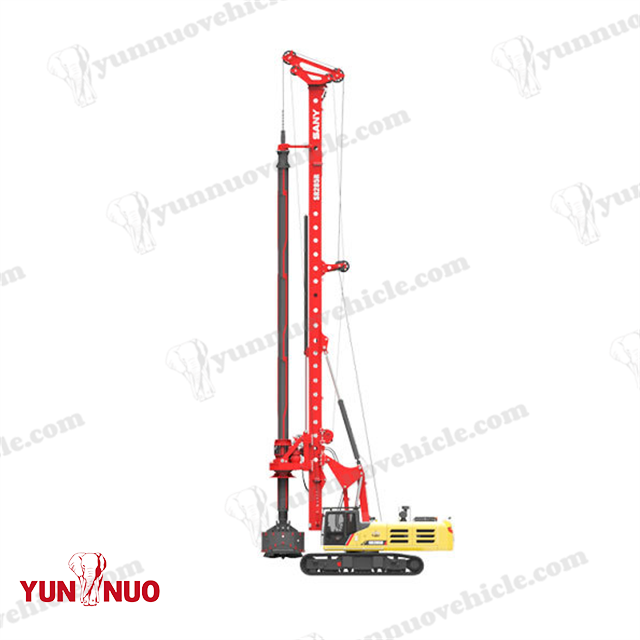

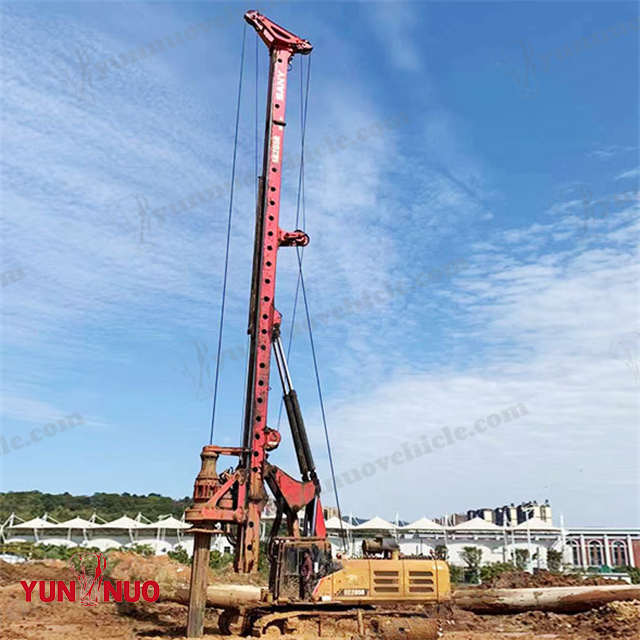

SR285
Sany
| General parameters | |||
| Equipment Model | SR285R-C10 | Model abbreviation | 285 |
| Engine | |||
| Model | ISUZU 6WG1 | Rated power (kW) | 300 |
| Displacement (L) | 15.68 | Rated speed (r/min) | 1800 |
| Whole machine parameters | |||
| Total mass of equipment (kg) | 100000 | Overall dimension (working state)(mm) | 25423 machine height |
| Overall dimension (transportation state)(mm) | 18125 × 3490 × 3690 | Output torque of power head (kN · m) | 285 |
| Power head speed (r/min) | 5~24 | Maximum drilling depth (mm) | 94000~61000 |
| Drilling diameter (without casing)(mm) | 2300 | Drilling diameter (with casing)(mm) | 2500 |
| Distance from swing center to tail of main engine (mm) | 4530 | ||
| Chassis parameters | |
| Track width (mm) | 800 |
| Pressurizing cylinder | |||
| Maximum pull-out force (kN) | 335 | Maximum pressure (kN) | 260 |
| Pressurizing cylinder stroke (mm) | 6000 | ||
| Main winl | |||
| Maximum lifting force (kN) | 330 | Max. hoist speed (m/min) | 72 |
| Diameter of wire rope (mm) | 36 | ||
| Vice winches | |||
| Maximum lifting force (kN) | 90 | Max. hoist speed (m/min) | 70 |
| Diameter of wire rope (mm) | 20 | ||
| Mast inclination | |||
| Sideways (°) | ±4 | Forward (°) | 5 |
| Tilt backward (°) | 90 | ||
| General parameters | |||
| Equipment Model | SR285R-C10 | Model abbreviation | 285 |
| Engine | |||
| Model | ISUZU 6WG1 | Rated power (kW) | 300 |
| Displacement (L) | 15.68 | Rated speed (r/min) | 1800 |
| Whole machine parameters | |||
| Total mass of equipment (kg) | 100000 | Overall dimension (working state)(mm) | 25423 machine height |
| Overall dimension (transportation state)(mm) | 18125 × 3490 × 3690 | Output torque of power head (kN · m) | 285 |
| Power head speed (r/min) | 5~24 | Maximum drilling depth (mm) | 94000~61000 |
| Drilling diameter (without casing)(mm) | 2300 | Drilling diameter (with casing)(mm) | 2500 |
| Distance from swing center to tail of main engine (mm) | 4530 | ||
| Chassis parameters | |
| Track width (mm) | 800 |
| Pressurizing cylinder | |||
| Maximum pull-out force (kN) | 335 | Maximum pressure (kN) | 260 |
| Pressurizing cylinder stroke (mm) | 6000 | ||
| Main winl | |||
| Maximum lifting force (kN) | 330 | Max. hoist speed (m/min) | 72 |
| Diameter of wire rope (mm) | 36 | ||
| Vice winches | |||
| Maximum lifting force (kN) | 90 | Max. hoist speed (m/min) | 70 |
| Diameter of wire rope (mm) | 20 | ||
| Mast inclination | |||
| Sideways (°) | ±4 | Forward (°) | 5 |
| Tilt backward (°) | 90 | ||
