6) Remove the joint between the transmission and the transmission shaft and remove the transmission shaft assembly from the vehicle.

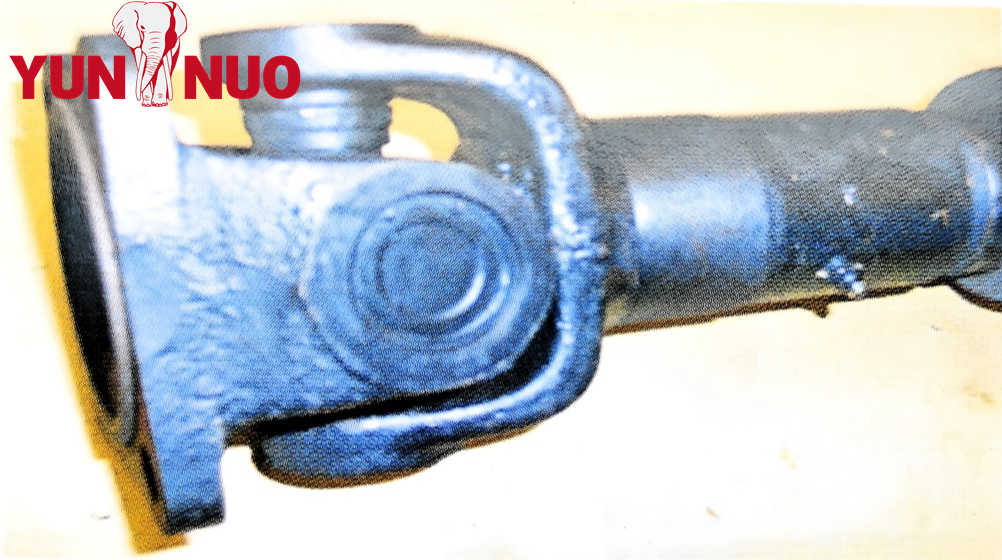

7) Before disassembling the transmission shaft, make aligning marks as shown in the figure.
Aligning mark
8) Remove the flange fork.

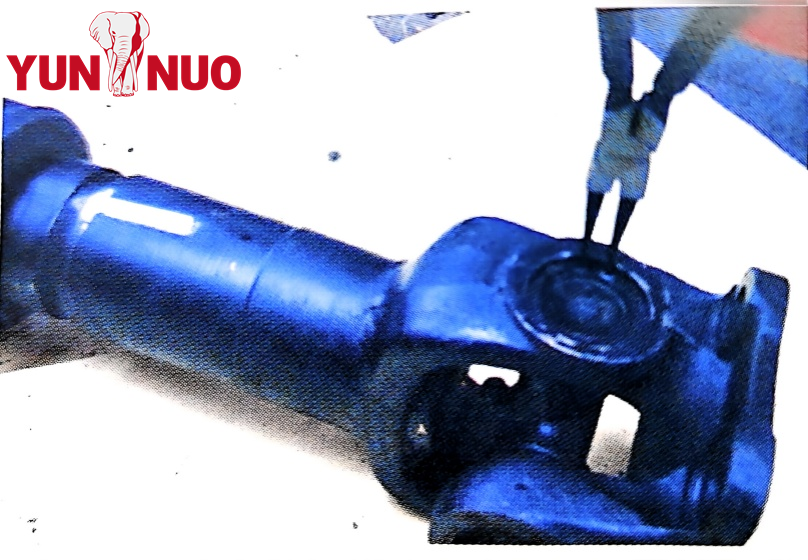

(1) Remove the two retainers on both sides in the flange fork hole with a pair of retainer pliers;

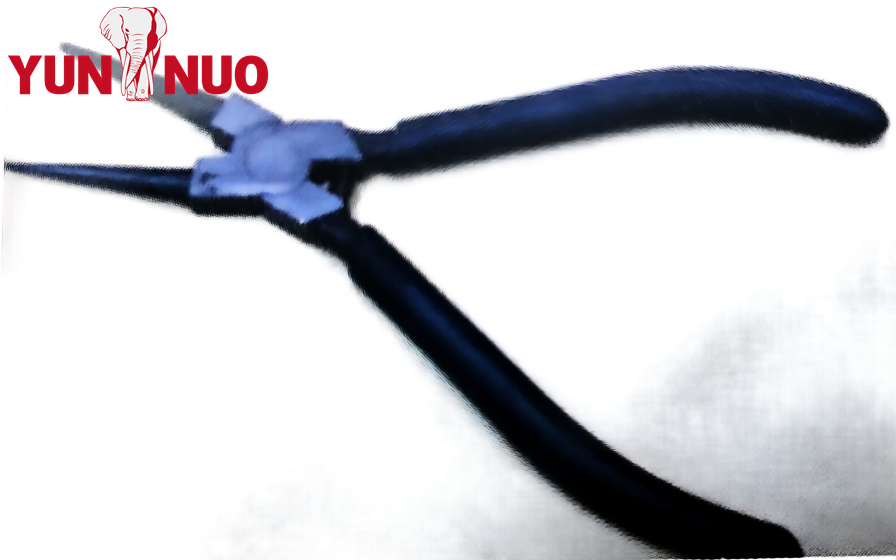

(Retainer pliers)
